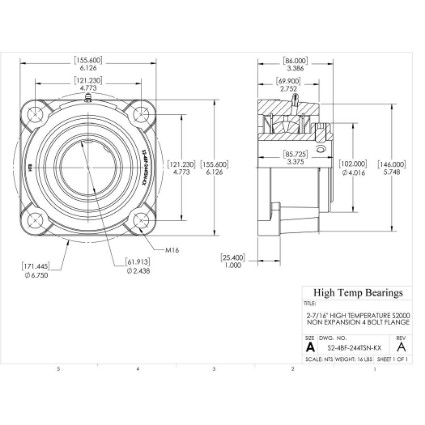

2-7/16" High Temperature S2000 Non Expansion 4 Bolt Flange Heavy Duty Bearing
Print Page
High Temperature S2000 4 Bolt Flange: S2-4BF-244TSN-KX
High Temperature S2000 4 Bolt Flange: S2-4BF-244TSN-KX
High Temperature S2000 Non Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$707.18
Qty:
EA
checkbox icon
This item ship within 24 hours.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Flange
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
2-7/16"
A (mm)
155.6
B (mm)
69.9
C (mm)
92
D (mm)
102
E (mm)
121.23
Bolt
M16
H (mm)
25.4
J (mm)
146
K (mm)
171.5
L (mm)
85.725
Co (lb)
46090
Weight(lbs)
16
Code
105675
PackageQTY
1
UOM
EA
Series
S2000-KX
Bore (mm)
61.9125
C (lb)
37090
Max RPM-Triple Lip Seal
1700
Max RPM-PTFE Seal
2360
Max RPM-Metal Labyrinth Seal
2360
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
