High Temperature S2000 4 Bolt Flange: S2-4BF-244TSE-KX

High Temperature S2000 4 Bolt Flange: S2-4BF-244TSE-KX

High Temperature S2000 Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$707.18
EA

checkbox icon This item ship within 24 hours.

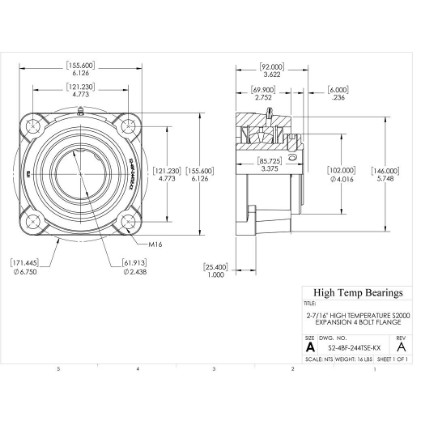

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size2-7/16"
A (mm)155.6
B (mm)69.9
C (mm)92
D (mm)102
E (mm)121.23
BoltM16
H (mm)25.4
J (mm)146
K (mm)171.5
L (mm)85.725
Co (lb)46090
Weight(lbs)16
Code105674
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)61.9125
X (mm)6
C (lb)37090
Max RPM-Triple Lip Seal1700
Max RPM-PTFE Seal2360
Max RPM-Metal Labyrinth Seal2360
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Expansion bearings can accommodate moderate axial shaft growth from thermal expansion by allowing axial movement between the housing and bearing OD. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
