Heavy Duty S2000 4-Bolt Flange: S2-4BF-244RSN

Heavy Duty S2000 4-Bolt Flange: S2-4BF-244RSN

S2000 Non-Expansion 4-Bolt Flange Mounted Spherical Roller Bearing
$654.84
EA

checkbox icon This item ship within 24 hours.

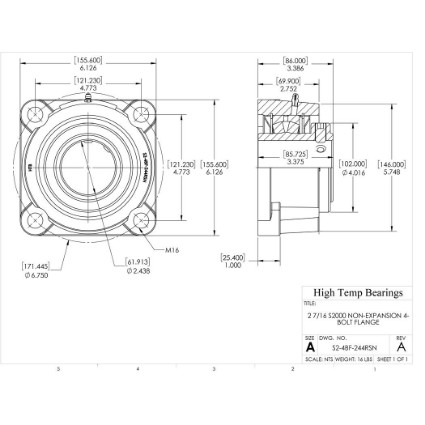

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size2-7/16"
A (mm)155.6
B (mm)69.9
C (mm)92
D (mm)102
E (mm)121.23
BoltM16
H (mm)25.4
J (mm)146
K (mm)171.5
L (mm)85.725
Co (lb)46090
Weight(lbs)16
Code105395
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)61.9125
C (lb)37090
Max RPM-Triple Lip Seal1700
Max RPM-PTFE Seal2360
Max RPM-Metal Labyrinth Seal2360
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
