S2000 Mounted Spherical Roller Bearings
>
1-15/16" S2000 Non Expansion 4 Bolt Flange Heavy Duty Bearing
Print Page
Heavy Duty S2000 4-Bolt Flange: S2-4BF-194RSN
Heavy Duty S2000 4-Bolt Flange: S2-4BF-194RSN
S2000 Non-Expansion 4-Bolt Flange Mounted Spherical Roller Bearing
$522.21
Qty:
EA
checkbox icon
This item ship within 24 hours.

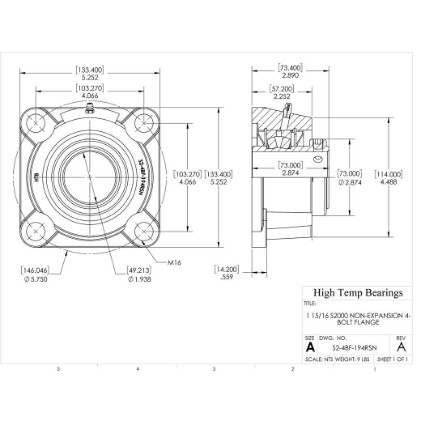

CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Flange
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
1-15/16"
A (mm)
133.4
B (mm)
57.2
C (mm)
79.4
D (mm)
73
E (mm)
103.27
Bolt
M16
H (mm)
14.2
J (mm)
114
K (mm)
146
L (mm)
73
Co (lb)
24730
Weight(lbs)
9
Code
105383
PackageQTY
1
UOM
EA
Series
S2000
Bore (mm)
49.2125
C (lb)
20230
Max RPM-Triple Lip Seal
2225
Max RPM-PTFE Seal
3180
Max RPM-Metal Labyrinth Seal
3180
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
