Heavy Duty S2000 4 Bolt Flange: S2-4BF-144RSE

Heavy Duty S2000 4 Bolt Flange: S2-4BF-144RSE

S2000 Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$427.93
EA

checkbox icon This item typically ship in 1-4 weeks.

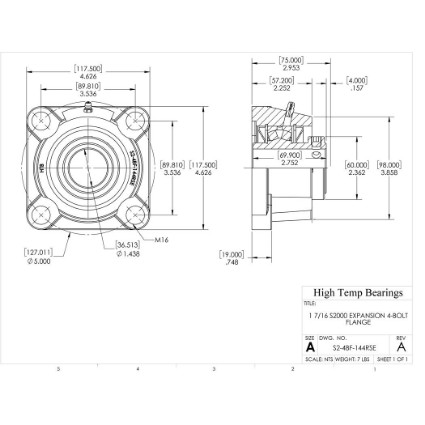

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size1-7/16"
A (mm)117.5
B (mm)57.2
C (mm)75
D (mm)60
E (mm)89.81
BoltM16
H (mm)19
J (mm)98
K (mm)127
L (mm)69.9
Co (lb)20230
Weight(lbs)7
Code105370
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)36.5125
X (mm)4
C (lb)17540
Max RPM-Triple Lip Seal2750
Max RPM-PTFE Seal3600
Max RPM-Metal Labyrinth Seal3600
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
