Home
>
Heavy Duty Mounted Bearings
>
S2000 Mounted Spherical Roller Bearings
>
100mm S2000 Expansion 4 Bolt Flange Heavy Duty Bearing
Print Page
Heavy Duty S2000 4 Bolt Flange: S2-4BF-100MMRSE
Heavy Duty S2000 4 Bolt Flange: S2-4BF-100MMRSE
S2000 Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$2,057.77
Qty:
EA
checkbox icon
This item ship within 24 hours.

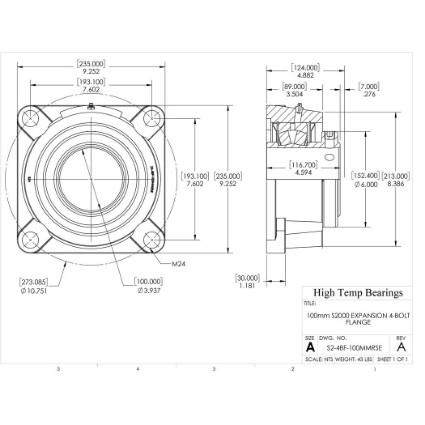

CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Flange
Type
Expansion
Collar
Single Locking Collar
Shaft Size
100mm
A (mm)
235
B (mm)
89
C (mm)
124
D (mm)
152.4
E (mm)
193.1
Bolt
M24
H (mm)
30
J (mm)
213
K (mm)
273
L (mm)
116.7
Co (lb)
112400
Weight(lbs)
43
Code
105422
PackageQTY
1
UOM
EA
Series
S2000
Bore (mm)
100
X (mm)
7
C (lb)
84300
Max RPM-Triple Lip Seal
1100
Max RPM-PTFE Seal
1350
Max RPM-Metal Labyrinth Seal
1350
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
