Home
>
Heavy Duty Mounted Bearings
>
High Temperature S2000 Mounted Spherical Roller Bearings
>
90mm High Temperature S2000 Non Expansion 2 Bolt Pillow Block Heavy Duty Bearing
Print Page

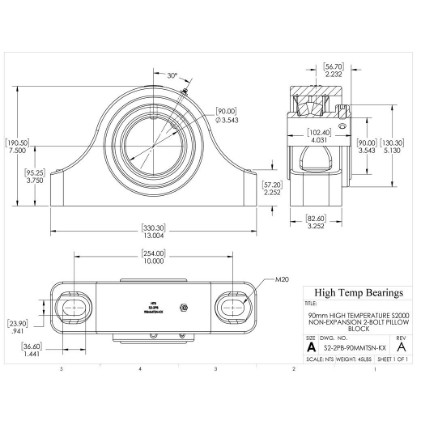

High Temperature S2000 2 Bolt Pillow Block: S2-2PB-90MMTSN-KX
High Temperature S2000 2 Bolt Pillow Block: S2-2PB-90MMTSN-KX
High Temperature S2000 Non Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$1,435.02
Qty:
EA
checkbox icon
This item ship within 24 hours.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
2-Bolt Pillow Block
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
90mm
A (mm)
330.2
B (mm)
82.6
D (mm)
130.3
Bolt
M20
G (mm)
36.6
H (mm)
95.25
J (mm)
190.5
K (mm)
23.9
L (mm)
102.4
M Min (mm)
241.3
M Max (mm)
266.7
Co (lb)
83180
Weight(lbs)
45
Code
105803
PackageQTY
1
UOM
EA
Series
S2000-KX
Bore (mm)
90
C (mm)
57.2
T (mm)
62.7
C (lb)
62950
Max RPM-Triple Lip Seal
1250
Max RPM-PTFE Seal
1600
Max RPM-Metal Labyrinth Seal
1600
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
