Heavy Duty Double Collar S2000 2 Bolt Pillow Block: S2-2PB-85MMRDE

Heavy Duty Double Collar S2000 2 Bolt Pillow Block: S2-2PB-85MMRDE

S2000 Double Collar Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$1,348.02
EA

checkbox icon This item typically ship in 1-4 weeks.

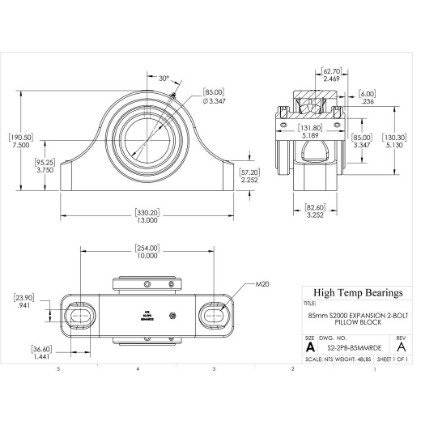

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeExpansion
CollarDouble Locking Collar
Shaft Size85mm
A (mm)330.2
B (mm)82.6
D (mm)130.3
BoltM20
G (mm)36.6
H (mm)95.25
J (mm)190.5
K (mm)23.9
L1 (mm)131.8
M Min (mm)241.3
M Max (mm)266.7
Co (lb)83180
Weight(lbs)48
Code105298
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)85
C (mm)57.2
T (mm)62.7
X (mm)6
C (lb)62950
Max RPM-Triple Lip Seal1250
Max RPM-PTFE Seal1600
Max RPM-Metal Labyrinth Seal1600
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
