Heavy Duty S2000 2 Bolt Pillow Block: S2-2PB-65MMRSE

Heavy Duty S2000 2 Bolt Pillow Block: S2-2PB-65MMRSE

S2000 Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$629.97
EA

checkbox icon This item typically ship in 1-4 weeks.

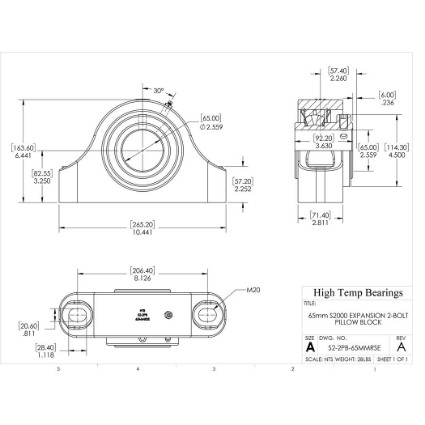

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeExpansion
CollarSingle Locking Collar
Shaft Size65mm
A (mm)265.2
B (mm)71.4
D (mm)114.3
BoltM20
G (mm)28.4
H (mm)82.55
J (mm)163.6
K (mm)20.6
L (mm)92.2
M Min (mm)198.4
M Max (mm)214.4
Co (lb)52830
Weight(lbs)28
Code105280
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)65
C (mm)57.2
T (mm)57.4
X (mm)6
C (lb)41590
Max RPM-Triple Lip Seal1500
Max RPM-PTFE Seal2150
Max RPM-Metal Labyrinth Seal2150
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
