Heavy Duty S2000 2 Bolt Pillow Block: S2-2PB-50MMRSN

Heavy Duty S2000 2 Bolt Pillow Block: S2-2PB-50MMRSN

S2000 Non Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$500.46
EA

checkbox icon This item typically ship in 1-4 weeks.

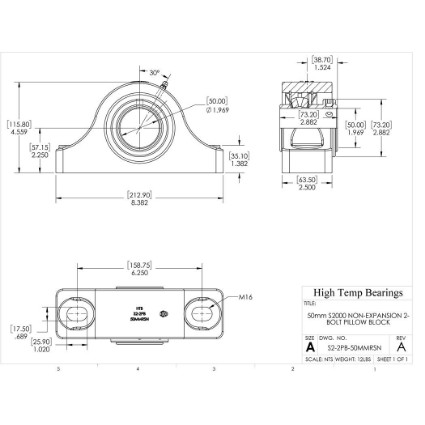

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size50mm
A (mm)212.9
B (mm)63.5
D (mm)73.2
BoltM16
G (mm)25.9
H (mm)57.15
J (mm)115.8
K (mm)17.5
L (mm)73.2
M Min (mm)150.9
M Max (mm)166.6
Co (lb)24730
Weight(lbs)12
Code105265
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)50
C (mm)35.1
T (mm)44.7
C (lb)20230
Max RPM-Triple Lip Seal2225
Max RPM-PTFE Seal3180
Max RPM-Metal Labyrinth Seal3180
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
