S2000 Mounted Spherical Roller Bearings
>
45mm S2000 Expansion 2 Bolt Pillow Block Heavy Duty Bearing
Print Page

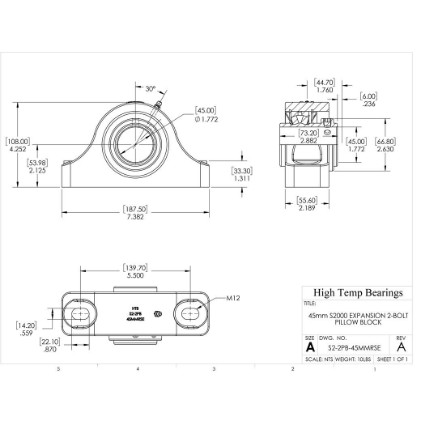

Heavy Duty S2000 2 Bolt Pillow Block: S2-2PB-45MMRSE
Heavy Duty S2000 2 Bolt Pillow Block: S2-2PB-45MMRSE
S2000 Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$472.48
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
2-Bolt Pillow Block
Type
Expansion
Collar
Single Locking Collar
Shaft Size
45mm
A (mm)
187.5
B (mm)
55.6
D (mm)
66.8
Bolt
M12
G (mm)
22.1
H (mm)
53.98
J (mm)
108
K (mm)
14.2
L (mm)
73.2
M Min (mm)
131.8
M Max (mm)
147.6
Co (lb)
21360
Weight(lbs)
10
Code
105258
PackageQTY
1
UOM
EA
Series
S2000
Bore (mm)
45
C (mm)
33.3
T (mm)
44.7
X (mm)
6
C (lb)
17980
Max RPM-Triple Lip Seal
2425
Max RPM-PTFE Seal
3360
Max RPM-Metal Labyrinth Seal
3360
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
