High Temperature S2000 Mounted Spherical Roller Bearings
>
40mm High Temperature S2000 Non Expansion 2 Bolt Pillow Block Heavy Duty Bearing
Print Page
High Temperature S2000 2 Bolt Pillow Block: S2-2PB-40MMTSN-KX
High Temperature S2000 2 Bolt Pillow Block: S2-2PB-40MMTSN-KX
High Temperature S2000 Non Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$515.70
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.

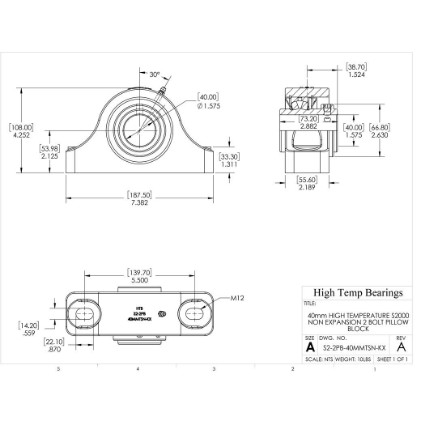

CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
2-Bolt Pillow Block
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
40mm
A (mm)
187.5
B (mm)
55.6
D (mm)
66.8
Bolt
M12
G (mm)
22.1
H (mm)
53.98
J (mm)
108
K (mm)
14.2
L (mm)
73.2
M Min (mm)
131.8
M Max (mm)
147.6
Co (lb)
21360
Weight(lbs)
10
Code
105564
PackageQTY
1
UOM
EA
Series
S2000-KX
Bore (mm)
40
C (mm)
33.3
T (mm)
44.7
C (lb)
17980
Max RPM-Triple Lip Seal
2425
Max RPM-PTFE Seal
3360
Max RPM-Metal Labyrinth Seal
3360
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
