Heavy Duty S2000 2-Bolt Pillow Block: S2-2PB-40MMRSE

Heavy Duty S2000 2-Bolt Pillow Block: S2-2PB-40MMRSE

S2000 Expansion 2-Bolt Pillow Block Mounted Spherical Roller Bearing
$472.48
EA

checkbox icon This item typically ship in 1-4 weeks.

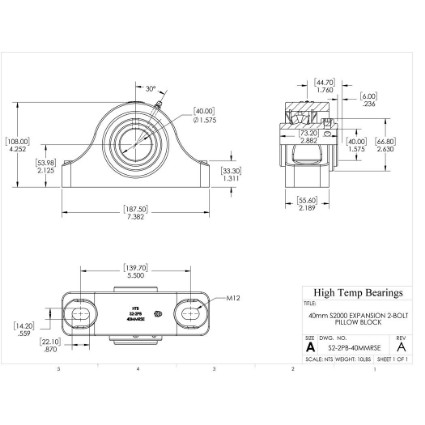

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeExpansion
CollarSingle Locking Collar
Shaft Size40mm
A (mm)187.5
B (mm)55.6
D (mm)66.8
BoltM12
G (mm)22.1
H (mm)53.98
J (mm)108
K (mm)14.2
L (mm)73.2
M Min (mm)131.8
M Max (mm)147.6
Co (lb)21360
Weight(lbs)10
Code105252
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)40
C (mm)33.3
T (mm)44.7
X (mm)6
C (lb)17980
Max RPM-Triple Lip Seal2425
Max RPM-PTFE Seal3360
Max RPM-Metal Labyrinth Seal3360
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
