Home
>
Heavy Duty Mounted Bearings
>
S2000 Mounted Spherical Roller Bearings
>
4" S2000 Non Expansion 2 Bolt Pillow Block Heavy Duty Bearing
Print Page

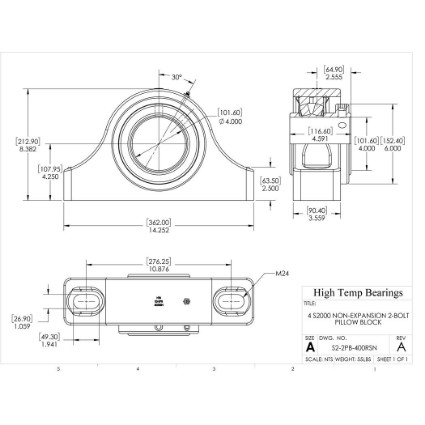

Heavy Duty S2000 2 Bolt Pillow Block: S2-2PB-400RSN
Heavy Duty S2000 2 Bolt Pillow Block: S2-2PB-400RSN
S2000 Non Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$1,958.30
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
2-Bolt Pillow Block
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
4"
A (mm)
362
B (mm)
90.4
D (mm)
152.4
Bolt
M24
G (mm)
49.3
H (mm)
107.95
J (mm)
212.9
K (mm)
26.9
L (mm)
116.6
M Min (mm)
254
M Max (mm)
298.5
Co (lb)
112400
Weight(lbs)
55
Code
105317
PackageQTY
1
UOM
EA
Series
S2000
Bore (mm)
101.6
C (mm)
63.5
T (mm)
71.9
C (lb)
84300
Max RPM-Triple Lip Seal
1100
Max RPM-PTFE Seal
1350
Max RPM-Metal Labyrinth Seal
1350
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
