High Temperature S2000 2 Bolt Pillow Block: S2-2PB-394TSN-KX

High Temperature S2000 2 Bolt Pillow Block: S2-2PB-394TSN-KX

High Temperature S2000 Non Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$2,046.45
EA

checkbox icon This item ship within 24 hours.

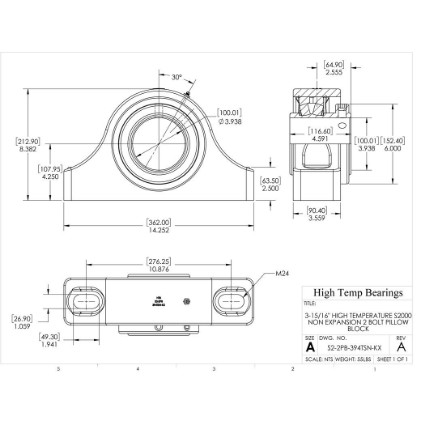

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size3-15/16"
A (mm)362
B (mm)90.4
D (mm)152.4
BoltM24
G (mm)49.3
H (mm)107.95
J (mm)212.9
K (mm)26.9
L (mm)116.6
M Min (mm)254
M Max (mm)298.5
Co (lb)112400
Weight(lbs)55
Code105858
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)100.0125
C (mm)63.5
T (mm)71.9
C (lb)84300
Max RPM-Triple Lip Seal1100
Max RPM-PTFE Seal1350
Max RPM-Metal Labyrinth Seal1350
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
