Heavy Duty Double Collar S2000 2-Bolt Pillow Block: S2-2PB-394RDE

Heavy Duty Double Collar S2000 2-Bolt Pillow Block: S2-2PB-394RDE

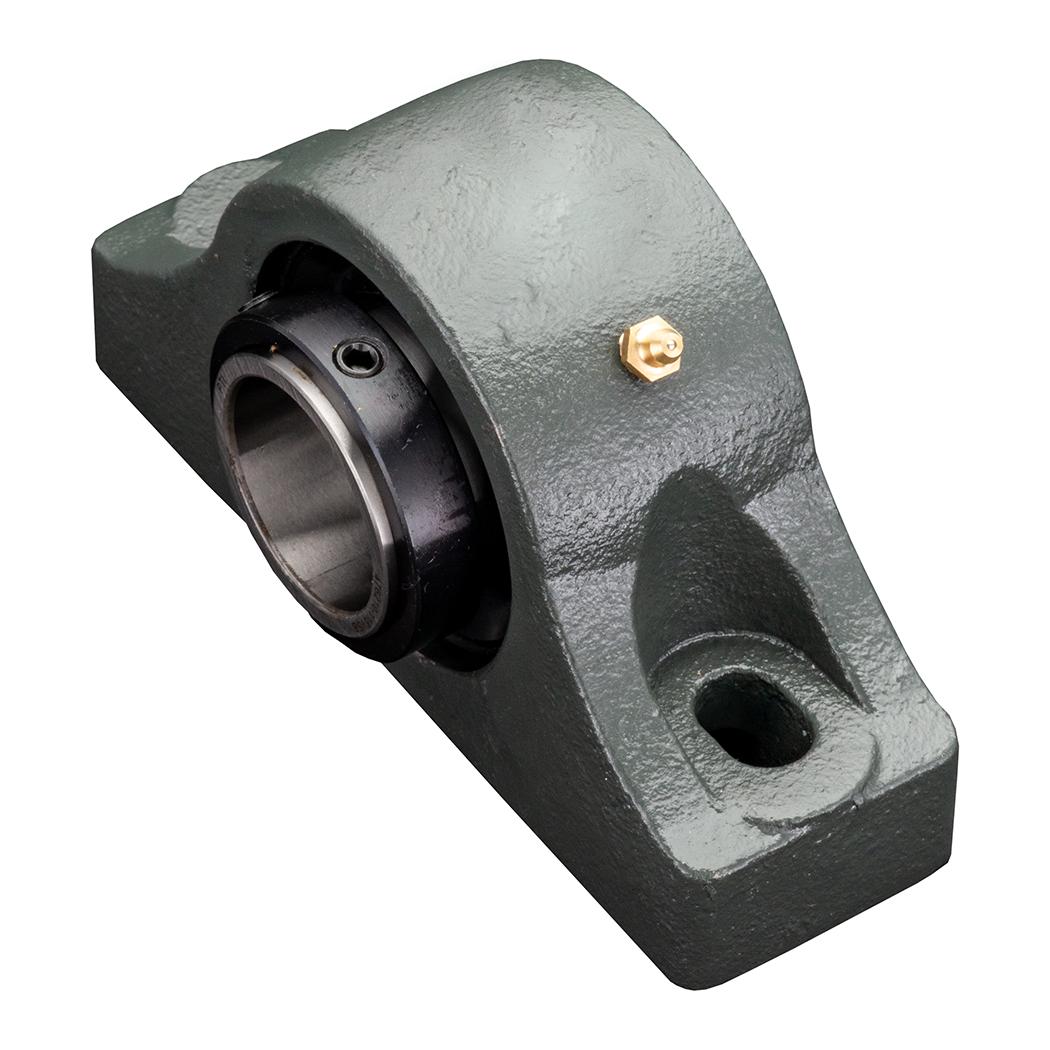

S2000 Double Collar Expansion 2-Bolt Pillow Block Mounted Spherical Roller Bearing
$2,221.48
EA

checkbox icon This item ship within 24 hours.

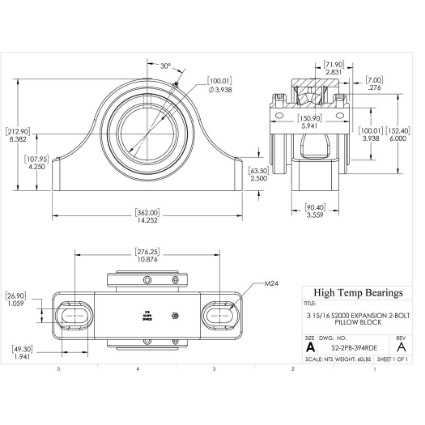

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeExpansion
CollarDouble Locking Collar
Shaft Size3-15/16"
A (mm)362
B (mm)90.4
D (mm)152.4
BoltM24
G (mm)49.3
H (mm)107.95
J (mm)212.9
K (mm)26.9
L1 (mm)150.9
M Min (mm)254
M Max (mm)298.5
Co (lb)112400
Weight(lbs)60
Code105312
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)100.0125
C (mm)63.5
T (mm)71.9
X (mm)7
C (lb)84300
Max RPM-Triple Lip Seal1100
Max RPM-PTFE Seal1350
Max RPM-Metal Labyrinth Seal1350
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
