Heavy Duty S2000 2-Bolt Pillow Block: S2-2PB-35MMRSE

Heavy Duty S2000 2-Bolt Pillow Block: S2-2PB-35MMRSE

S2000 Expansion 2-Bolt Pillow Block Mounted Spherical Roller Bearing
$419.64
EA

checkbox icon This item typically ship in 1-4 weeks.

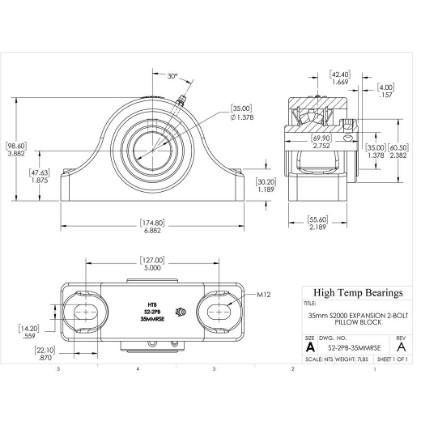

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeExpansion
CollarSingle Locking Collar
Shaft Size35mm
A (mm)174.8
B (mm)55.6
D (mm)60.5
BoltM12
G (mm)22.1
H (mm)47.63
J (mm)98.6
K (mm)14.2
L (mm)69.9
M Min (mm)119.1
M Max (mm)134.9
Co (lb)20230
Weight(lbs)7
Code105244
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)35
C (mm)30.2
T (mm)42.4
X (mm)4
C (lb)17540
Max RPM-Triple Lip Seal2750
Max RPM-PTFE Seal3600
Max RPM-Metal Labyrinth Seal3600
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
