High Temperature S2000 2 Bolt Pillow Block: S2-2PB-344TSN-KX

High Temperature S2000 2 Bolt Pillow Block: S2-2PB-344TSN-KX

High Temperature S2000 Non Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$1,427.41
EA

checkbox icon This item ship within 24 hours.

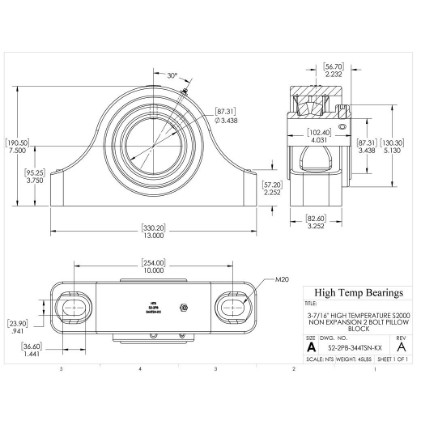

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size3-7/16"
A (mm)330.2
B (mm)82.6
D (mm)130.3
BoltM20
G (mm)36.6
H (mm)95.25
J (mm)190.5
K (mm)23.9
L (mm)102.4
M Min (mm)241.3
M Max (mm)266.7
Co (lb)83180
Weight(lbs)45
Code105791
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)87.3125
C (mm)57.2
T (mm)62.7
C (lb)62950
Max RPM-Triple Lip Seal1250
Max RPM-PTFE Seal1600
Max RPM-Metal Labyrinth Seal1600
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
