S2000 Mounted Spherical Roller Bearings
>
3-7/16" S2000 Double Locking Expansion 2 Bolt Pillow Block Heavy Duty Bearing
Print Page
Heavy Duty Double Collar S2000 2 Bolt Pillow Block: S2-2PB-344RDE
Heavy Duty Double Collar S2000 2 Bolt Pillow Block: S2-2PB-344RDE

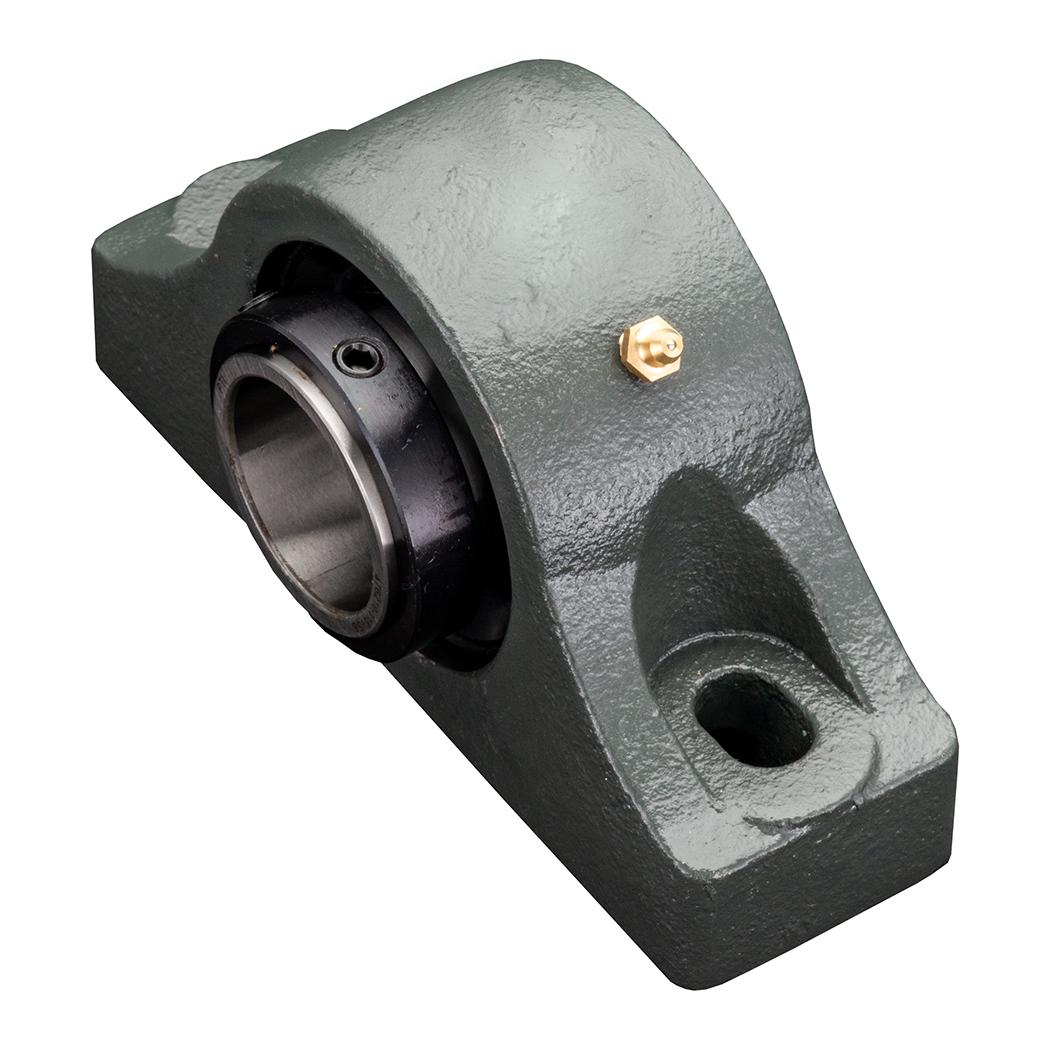

S2000 Double Collar Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$1,024.18
Qty:
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
Manual
TDS1
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
Attribute name
Attribute value
Daily Shipping Deal
BIGBEARING
Product Information
Attribute name
Attribute value
Code
105302
PackageQTY
Package Quantity
1
UOM
Unit of Measure
EA
Series
S2000
Construction
2-Bolt Pillow Block
Type
Expansion
Collar
Double Locking Collar
Shaft Size
3-7/16"

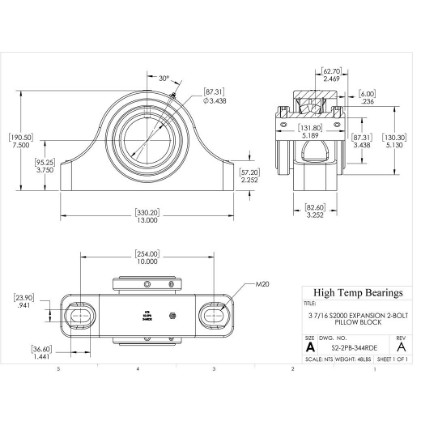

Dimensions
Attribute name
Attribute value
Bore (mm)
87.3125
A (mm)
330.2
B (mm)
82.6
C (mm)
57.2
D (mm)
130.3
G (mm)
36.6
H (mm)
95.25
J (mm)
190.5
K (mm)
23.9
L1 (mm)
131.8
M Min (mm)
241.3
M Max (mm)
266.7
T (mm)
62.7
X (mm)
6
Calculation Data
Attribute name
Attribute value
C (lb)
Dynamic load capacity
62950
Co (lb)
Static load capacity
83180
Mass
Attribute name
Attribute value
Weight(lbs)
48
Mounting Information
Attribute name
Attribute value
Bolt
Recommended Foot Bolt
M20
Safe Loads
Attribute name
Attribute value
Max RPM-Triple Lip Seal
Limiting speed
1250
Max RPM-PTFE Seal
Limiting speed
1600
Max RPM-Metal Labyrinth Seal
Limiting speed
1600
