High Temperature S2000 2 Bolt Pillow Block: S2-2PB-30MMTSE-KX

High Temperature S2000 2 Bolt Pillow Block: S2-2PB-30MMTSE-KX

High Temperature S2000 Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$460.22
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD

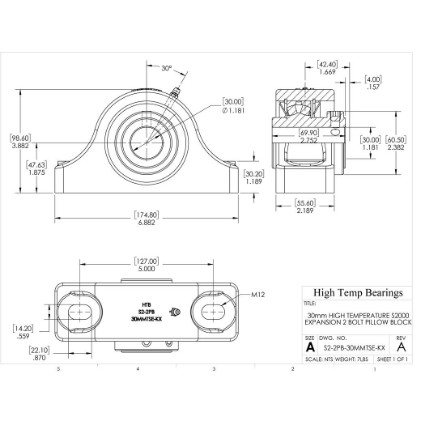

Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeExpansion
CollarSingle Locking Collar
Shaft Size30mm
A (mm)174.8
B (mm)55.6
D (mm)60.5
BoltM12
G (mm)22.1
H (mm)47.63
J (mm)98.6
K (mm)14.2
L (mm)69.9
M Min (mm)119.1
M Max (mm)134.9
Co (lb)20230
Weight(lbs)7
Code105535
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)30
C (mm)30.2
T (mm)42.4
X (mm)4
C (lb)17540
Max RPM-Triple Lip Seal2750
Max RPM-PTFE Seal3600
Max RPM-Metal Labyrinth Seal3600
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Expansion bearings can accommodate moderate axial shaft growth from thermal expansion by allowing axial movement between the housing and bearing OD. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
