High Temperature S2000 2 Bolt Pillow Block: S2-2PB-300TSN-KX

High Temperature S2000 2 Bolt Pillow Block: S2-2PB-300TSN-KX

High Temperature S2000 Non Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$1,033.56
EA

checkbox icon This item ship within 24 hours.

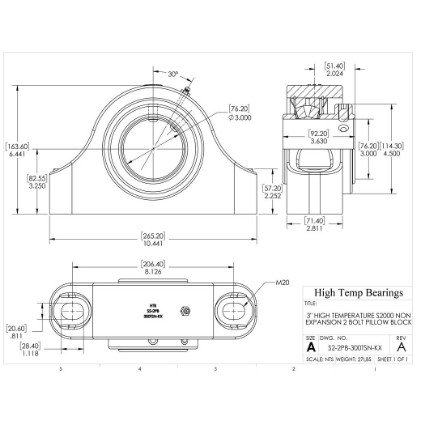

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size3"
A (mm)265.2
B (mm)71.4
D (mm)114.3
BoltM20
G (mm)28.4
H (mm)82.55
J (mm)163.6
K (mm)20.6
L (mm)92.2
M Min (mm)198.4
M Max (mm)214.4
Co (lb)52830
Weight(lbs)27
Code105721
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)76.2
C (mm)57.2
T (mm)57.4
C (lb)41590
Max RPM-Triple Lip Seal1500
Max RPM-PTFE Seal2150
Max RPM-Metal Labyrinth Seal2150
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
