Heavy Duty S2000 2-Bolt Pillow Block: S2-2PB-250RSE

Heavy Duty S2000 2-Bolt Pillow Block: S2-2PB-250RSE

S2000 Expansion 2-Bolt Pillow Block Mounted Spherical Roller Bearing
$629.97
EA

checkbox icon This item ship within 24 hours.

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeExpansion
CollarSingle Locking Collar
Shaft Size2-1/2"

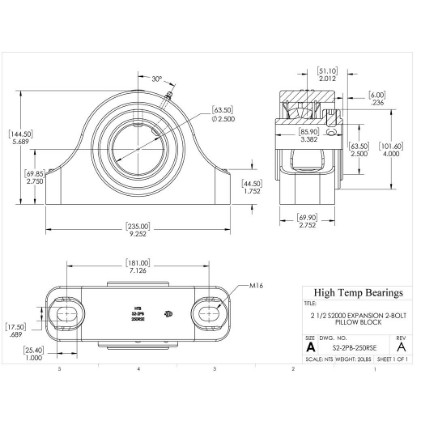

A (mm)235
B (mm)69.9
D (mm)101.6
BoltM16
G (mm)25.4
H (mm)69.85
J (mm)144.5
K (mm)17.5
L (mm)85.9
M Min (mm)173
M Max (mm)189
Co (lb)46090
Weight(lbs)20
Code105278
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)63.5
C (mm)44.5
T (mm)51.1
X (mm)6
C (lb)37090
Max RPM-Triple Lip Seal1700
Max RPM-PTFE Seal2360
Max RPM-Metal Labyrinth Seal2360
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
