High Temperature S2000 Mounted Spherical Roller Bearings
>
2-7/16" High Temperature S2000 Non Expansion 2 Bolt Pillow Block Heavy Duty Bearing
Print Page
High Temperature S2000 2 Bolt Pillow Block: S2-2PB-244TSN-KX
High Temperature S2000 2 Bolt Pillow Block: S2-2PB-244TSN-KX

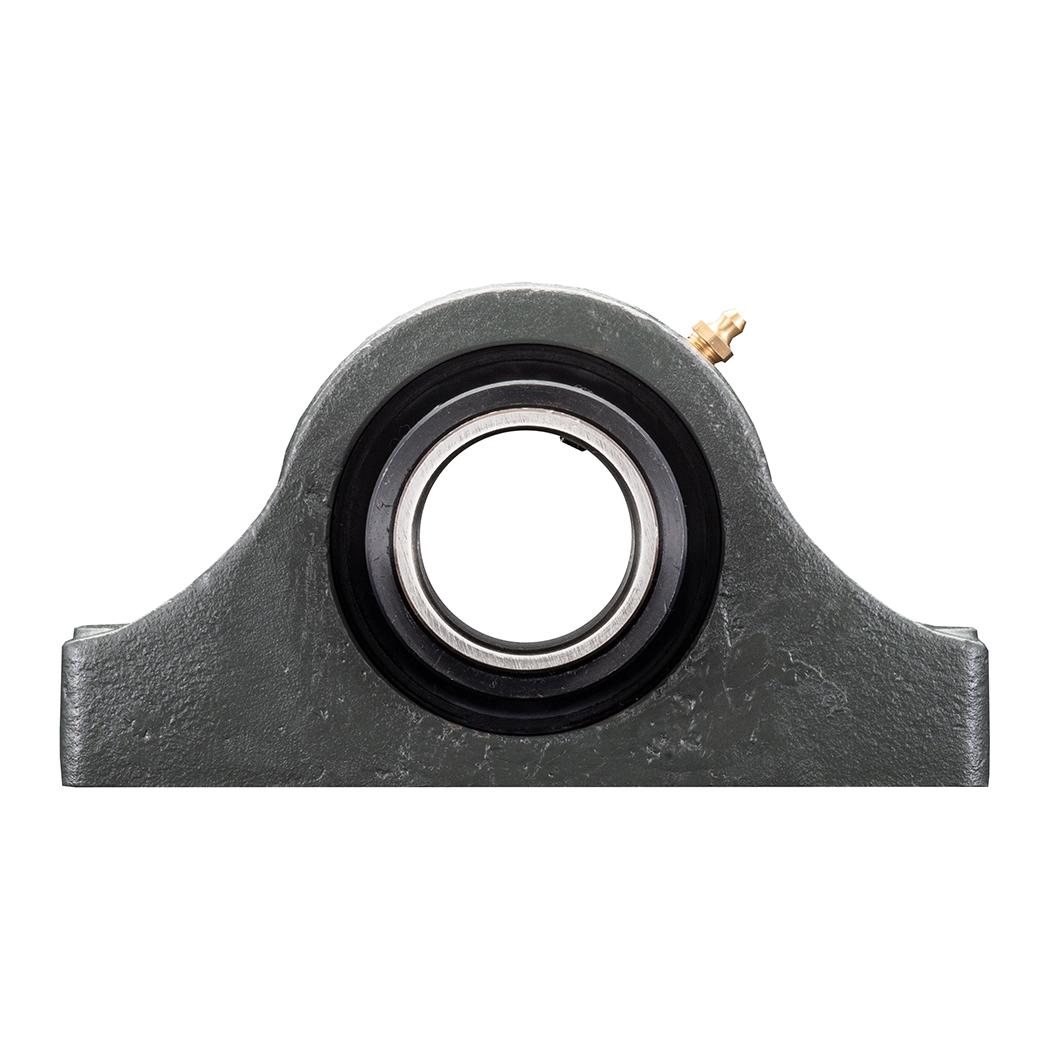

High Temperature S2000 Non Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$673.46
Qty:
EA
checkbox icon
This item ship within 24 hours.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
2-Bolt Pillow Block
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
2-7/16"

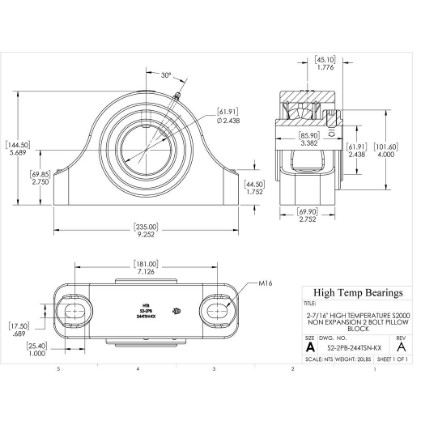

A (mm)
235
B (mm)
69.9
D (mm)
101.6
Bolt
M16
G (mm)
25.4
H (mm)
69.85
J (mm)
144.5
K (mm)
17.5
L (mm)
85.9
M Min (mm)
173
M Max (mm)
189
Co (lb)
46090
Weight(lbs)
20
Code
105663
PackageQTY
1
UOM
EA
Series
S2000-KX
Bore (mm)
61.9125
C (mm)
44.5
T (mm)
51.1
C (lb)
37090
Max RPM-Triple Lip Seal
1700
Max RPM-PTFE Seal
2360
Max RPM-Metal Labyrinth Seal
2360
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
