Home
>
Heavy Duty Mounted Bearings
>
S2000 Mounted Spherical Roller Bearings
>
2-7/16" S2000 Double Locking Non-Expansion 2 Bolt Pillow Block Heavy Duty Bearing
Print Page
Heavy Duty Double Collar S2000 2 Bolt Pillow Block: S2-2PB-244RDN
Heavy Duty Double Collar S2000 2 Bolt Pillow Block: S2-2PB-244RDN

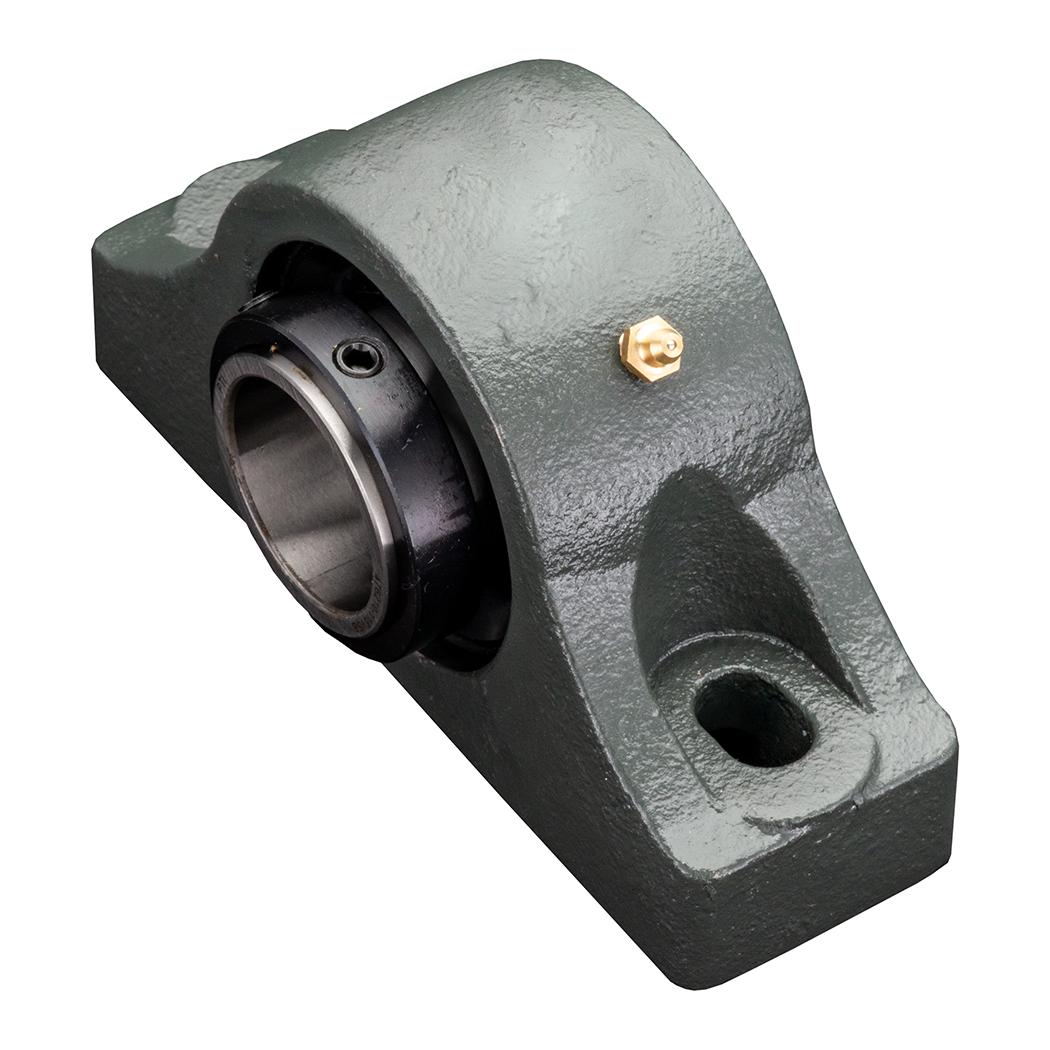

S2000 Double Collar Non Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$714.94
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
2-Bolt Pillow Block
Type
Non-Expansion
Collar
Double Locking Collar
Shaft Size
2-7/16"
A (mm)
235
B (mm)
69.9
D (mm)
101.6
Bolt
M16
G (mm)
25.4
H (mm)
69.85
J (mm)
144.5
K (mm)
17.5
L1 (mm)
108
M Min (mm)
173
M Max (mm)
189
Co (lb)
46090
Weight(lbs)
22
Code
105275
PackageQTY
1
UOM
EA
Series
S2000
Bore (mm)
61.9125
C (mm)
44.5
T (mm)
51.1
C (lb)
37090
Max RPM-Triple Lip Seal
1700
Max RPM-PTFE Seal
2360
Max RPM-Metal Labyrinth Seal
2360
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
