High Temperature S2000 2 Bolt Pillow Block: S2-2PB-219TSN-KX

High Temperature S2000 2 Bolt Pillow Block: S2-2PB-219TSN-KX

High Temperature S2000 Non Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$602.74
EA

checkbox icon This item ship within 24 hours.

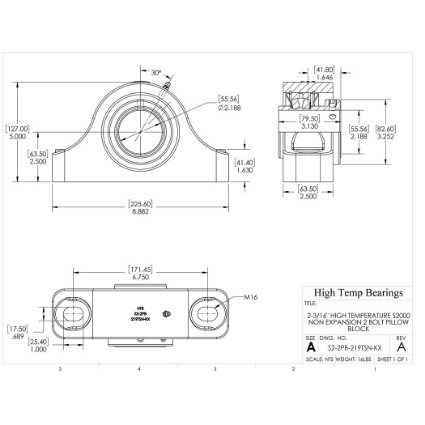

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size2-3/16"
A (mm)225.6
B (mm)63.5
D (mm)82.6
BoltM16
G (mm)25.4
H (mm)63.5
J (mm)127
K (mm)17.5
L (mm)79.5
M Min (mm)163.6
M Max (mm)179.3
Co (lb)28100
Weight(lbs)16
Code105639
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)55.5625
C (mm)41.4
T (mm)47.8
C (lb)23600
Max RPM-Triple Lip Seal2000
Max RPM-PTFE Seal2800
Max RPM-Metal Labyrinth Seal2800
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
