S2000 Mounted Spherical Roller Bearings
>

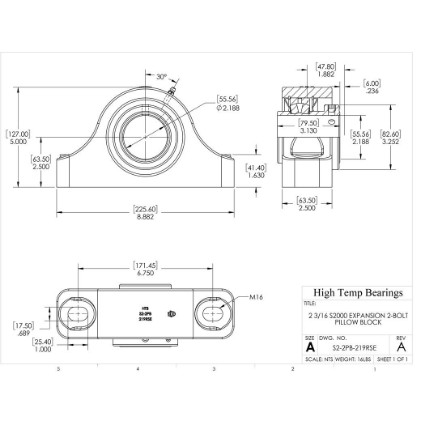

2-3/16" S2000 Expansion 2 Bolt Pillow Block Heavy Duty Bearing
Print Page
Heavy Duty S2000 2-Bolt Pillow Block: S2-2PB-219RSE
Heavy Duty S2000 2-Bolt Pillow Block: S2-2PB-219RSE
S2000 Expansion 2-Bolt Pillow Block Mounted Spherical Roller Bearing
$555.37
Qty:
EA
checkbox icon
This item ship within 24 hours.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
2-Bolt Pillow Block
Type
Expansion
Collar
Single Locking Collar
Shaft Size
2-3/16"
A (mm)
225.6
B (mm)
63.5
D (mm)
82.6
Bolt
M16
G (mm)
25.4
H (mm)
63.5
J (mm)
127
K (mm)
17.5
L (mm)
79.5
M Min (mm)
163.6
M Max (mm)
179.3
Co (lb)
28100
Weight(lbs)
16
Code
105270
PackageQTY
1
UOM
EA
Series
S2000
Bore (mm)
55.5625
C (mm)
41.4
T (mm)
47.8
X (mm)
6
C (lb)
23600
Max RPM-Triple Lip Seal
2000
Max RPM-PTFE Seal
2800
Max RPM-Metal Labyrinth Seal
2800
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
