High Temperature S2000 2 Bolt Pillow Block: S2-2PB-200TSN-KX

High Temperature S2000 2 Bolt Pillow Block: S2-2PB-200TSN-KX

High Temperature S2000 Non Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$545.08
EA

checkbox icon This item ship within 24 hours.

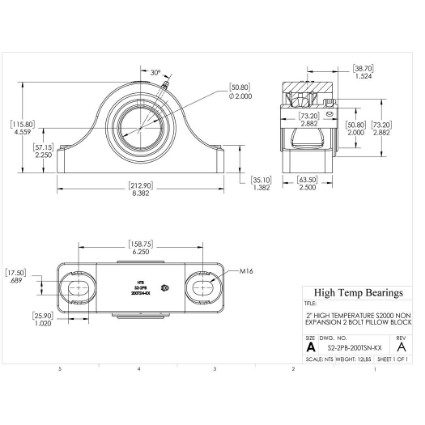

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size2"
A (mm)212.9
B (mm)63.5
D (mm)73.2
BoltM16
G (mm)25.9
H (mm)57.15
J (mm)115.8
K (mm)17.5
L (mm)73.2
M Min (mm)150.9
M Max (mm)166.6
Co (lb)24730
Weight(lbs)12
Code105598
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)50.8
C (mm)35.1
T (mm)44.7
C (lb)20230
Max RPM-Triple Lip Seal2225
Max RPM-PTFE Seal3180
Max RPM-Metal Labyrinth Seal3180
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
