Heavy Duty S2000 2 Bolt Pillow Block: S2-2PB-194RSE

Heavy Duty S2000 2 Bolt Pillow Block: S2-2PB-194RSE

S2000 Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$497.35
EA

checkbox icon This item ship within 24 hours.

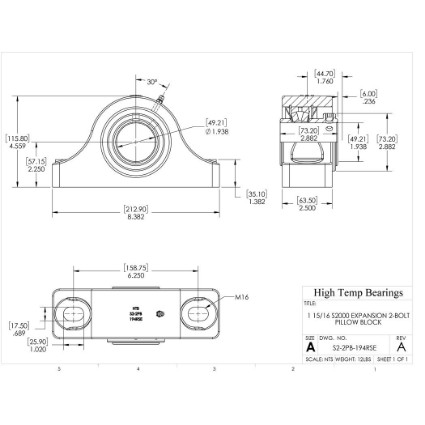

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeExpansion
CollarSingle Locking Collar
Shaft Size1-15/16"
A (mm)212.9
B (mm)63.5
D (mm)73.2
BoltM16
G (mm)25.9
H (mm)57.15
J (mm)115.8
K (mm)17.5
L (mm)73.2
M Min (mm)150.9
M Max (mm)166.6
Co (lb)24730
Weight(lbs)12
Code105262
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)49.2125
C (mm)35.1
T (mm)44.7
X (mm)6
C (lb)20230
Max RPM-Triple Lip Seal2225
Max RPM-PTFE Seal3180
Max RPM-Metal Labyrinth Seal3180
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
