S2000 Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$306.94

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code105254
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesS2000
Construction2-Bolt Pillow Block
TypeExpansion
CollarSingle Locking Collar
Shaft Size1-11/16"

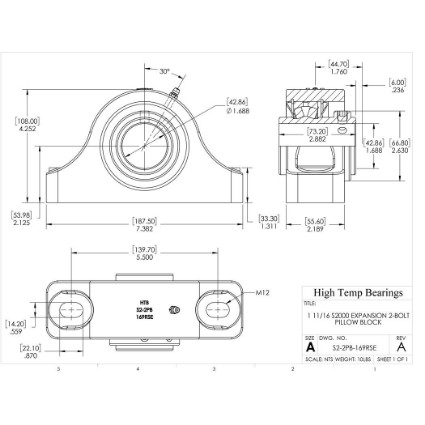

Dimensions

Attribute nameAttribute value
Bore (mm)42.8625
A (mm)187.5
B (mm)55.6
C (mm)33.3
D (mm)66.8
G (mm)22.1
H (mm)53.98
J (mm)108
K (mm)14.2
L (mm)73.2
M Min (mm)131.8
M Max (mm)147.6
T (mm)44.7
X (mm)6

Calculation Data

Attribute nameAttribute value
C (lb)Dynamic load capacity17980
Co (lb)Static load capacity21360

Mass

Attribute nameAttribute value
Weight(lbs)10

Mounting Information

Attribute nameAttribute value
BoltRecommended Foot BoltM12

Safe Loads

Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed2425
Max RPM-PTFE SealLimiting speed3360
Max RPM-Metal Labyrinth SealLimiting speed3360
