High Temperature S2000 Mounted Spherical Roller Bearings
>

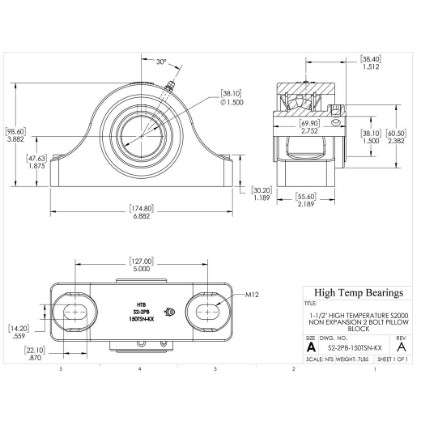

1-1/2" High Temperature S2000 Non Expansion 2 Bolt Pillow Block Heavy Duty Bearing
Print Page
High Temperature S2000 2 Bolt Pillow Block: S2-2PB-150TSN-KX
High Temperature S2000 2 Bolt Pillow Block: S2-2PB-150TSN-KX
High Temperature S2000 Non Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$460.22
Qty:
EA
checkbox icon
This item ship within 24 hours.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
2-Bolt Pillow Block
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
1-1/2"
A (mm)
174.8
B (mm)
55.6
D (mm)
60.5
Bolt
M12
G (mm)
22.1
H (mm)
47.63
J (mm)
98.6
K (mm)
14.2
L (mm)
69.9
M Min (mm)
119.1
M Max (mm)
134.9
Co (lb)
20230
Weight(lbs)
7
Code
105534
PackageQTY
1
UOM
EA
Series
S2000-KX
Bore (mm)
38.1
C (mm)
30.2
T (mm)
42.4
C (lb)
17540
Max RPM-Triple Lip Seal
2750
Max RPM-PTFE Seal
3600
Max RPM-Metal Labyrinth Seal
3600
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
