Heavy Duty S2000 2 Bolt Pillow Block: S2-2PB-144RSN

Heavy Duty S2000 2 Bolt Pillow Block: S2-2PB-144RSN

S2000 Non Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$271.40
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
Attribute nameAttribute value
Daily Shipping DealFree shipping on $1999 or more in Type-E and S2000 Bearings
Product Information
Attribute nameAttribute value
Code105249
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesS2000
Construction2-Bolt Pillow Block
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size1-7/16"

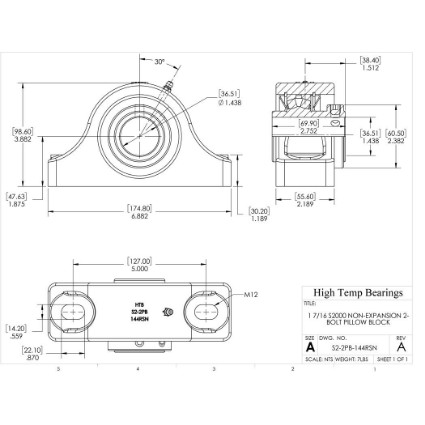

Dimensions
Attribute nameAttribute value
Bore (mm)36.5125
A (mm)174.8
B (mm)55.6
C (mm)30.2
D (mm)60.5
G (mm)22.1
H (mm)47.63
J (mm)98.6
K (mm)14.2
L (mm)69.9
M Min (mm)119.1
M Max (mm)134.9
T (mm)42.4
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity17540
Co (lb)Static load capacity20230
Mass
Attribute nameAttribute value
Weight(lbs)7
Mounting Information
Attribute nameAttribute value
BoltRecommended Foot BoltM12
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed2750
Max RPM-PTFE SealLimiting speed3600
Max RPM-Metal Labyrinth SealLimiting speed3600
