Heavy Duty S2000 2 Bolt Pillow Block: S2-2PB-144RSE

Heavy Duty S2000 2 Bolt Pillow Block: S2-2PB-144RSE

S2000 Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$271.40

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING
Product Information
Attribute nameAttribute value
Code105248
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesS2000
Construction2-Bolt Pillow Block
TypeExpansion
CollarSingle Locking Collar
Shaft Size1-7/16"

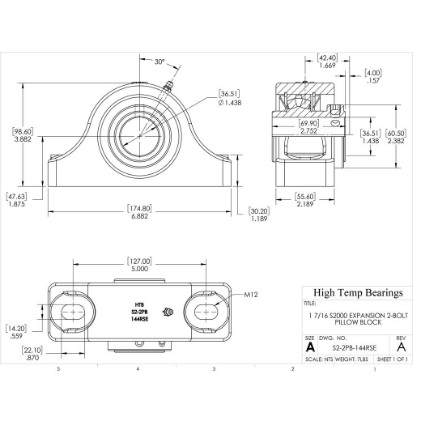

Dimensions
Attribute nameAttribute value
Bore (mm)36.5125
A (mm)174.8
B (mm)55.6
C (mm)30.2
D (mm)60.5
G (mm)22.1
H (mm)47.63
J (mm)98.6
K (mm)14.2
L (mm)69.9
M Min (mm)119.1
M Max (mm)134.9
T (mm)42.4
X (mm)4
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity17540
Co (lb)Static load capacity20230
Mass
Attribute nameAttribute value
Weight(lbs)7
Mounting Information
Attribute nameAttribute value
BoltRecommended Foot BoltM12
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed2750
Max RPM-PTFE SealLimiting speed3600
Max RPM-Metal Labyrinth SealLimiting speed3600
