Single Row NUP Cylindrical Roller Bearing: NUP317ECP

Single Row NUP Cylindrical Roller Bearing: NUP317ECP

Single Row NUP Cylindrical Roller Bearing
$903.75
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

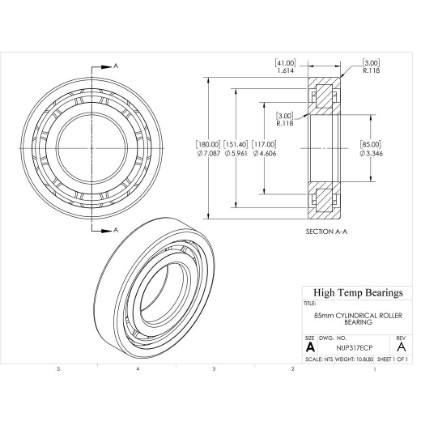

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges ID and Two OD
Shaft Size85mm
D (mm)180
B (mm)41
C (lb)76435
C0 (lb)75311
Pu (lb)9330
Nr (RPM)4000
Nmax (RPM)4800
Weight(lbs)10.8
Code410491
Bore (mm)85
Da (mm)165.5
damin (mm)99
d1 (mm)117
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
Damin-db (mm)120
r1-r2 (mm)3
r3-r4 (mm)3
ramax (mm)2.5
k0.15
D1 (mm)151.4
F (mm)108
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
