Single Row NUP Cylindrical Roller Bearing: NUP313ECP

Single Row NUP Cylindrical Roller Bearing: NUP313ECP

Single Row NUP Cylindrical Roller Bearing
$472.87
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

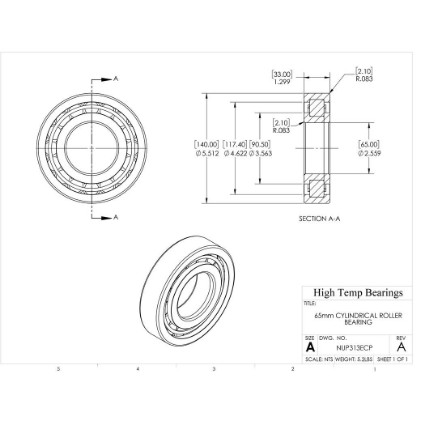

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges ID and Two OD
Shaft Size65mm
D (mm)140
B (mm)33
C (lb)47660
C0 (lb)44063
Pu (lb)5733
Nr (RPM)5300
Nmax (RPM)6000
Weight(lbs)5.2
Code410435
Bore (mm)65
Da (mm)127.8
damin (mm)77
d1 (mm)90.5
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
Damin-db (mm)93
r1-r2 (mm)2.1
r3-r4 (mm)2.1
ramax (mm)2
k0.15
D1 (mm)117.4
F (mm)82.5
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
