Single Row NUP Cylindrical Roller Bearing: NUP307ECP

Single Row NUP Cylindrical Roller Bearing: NUP307ECP

Single Row NUP Cylindrical Roller Bearing
$175.37
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

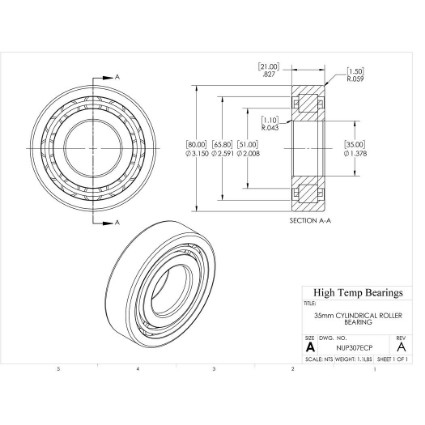

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges ID and Two OD
Shaft Size35mm
D (mm)80
B (mm)21
C (lb)16861
C0 (lb)14163
Pu (lb)1832
Nr (RPM)9500
Nmax (RPM)11000
Weight(lbs)1.1
Code410349
Bore (mm)35
Da (mm)72.2
damin (mm)44
d1 (mm)51
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
Damin-db (mm)53
r1-r2 (mm)1.5
r3-r4 (mm)1.1
ramax (mm)1.5
k0.15
D1 (mm)65.8
F (mm)46.2
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
