Single Row NUP Cylindrical Roller Bearing: NUP2306ECP

Single Row NUP Cylindrical Roller Bearing: NUP2306ECP

Single Row NUP Cylindrical Roller Bearing
$307.01
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

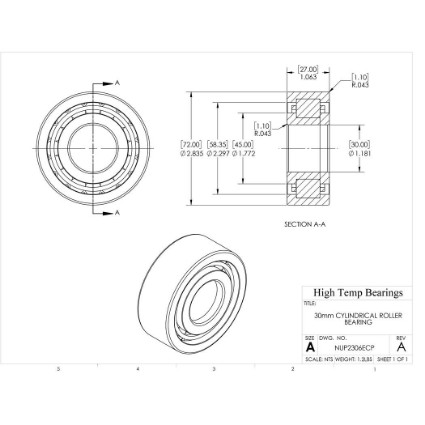

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges ID and Two OD
Shaft Size30mm
D (mm)72
B (mm)27
C (lb)18659
C0 (lb)16861
Pu (lb)2169
Nr (RPM)11000
Nmax (RPM)12000
Weight(lbs)1.2
Code410338
Bore (mm)30
Da (mm)65.1
damin (mm)37
d1 (mm)45
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
Damin-db (mm)47
r1-r2 (mm)1.1
r3-r4 (mm)1.1
ramax (mm)1
k0.25
D1 (mm)58.35
F (mm)40.5
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
