Single Row NUP Cylindrical Roller Bearing: NUP2304ECP

Single Row NUP Cylindrical Roller Bearing: NUP2304ECP

Single Row NUP Cylindrical Roller Bearing
$272.65
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

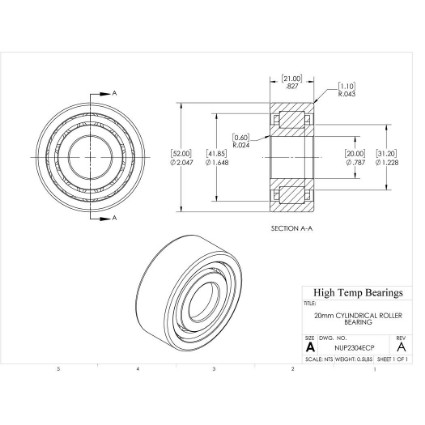

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges ID and Two OD
Shaft Size20mm
D (mm)52
B (mm)21
C (lb)10678
C0 (lb)8543
Pu (lb)1079
Nr (RPM)15000
Nmax (RPM)18000
Weight(lbs)0.5
Code410310
Bore (mm)20
Da (mm)45.4
damin (mm)26.1
d1 (mm)31.2
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
Damin-db (mm)33
r1-r2 (mm)1.1
r3-r4 (mm)0.6
ramax (mm)1
k0.25
D1 (mm)41.85
F (mm)27.5
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
