Single Row NUP Cylindrical Roller Bearing: NUP2216ECP

Single Row NUP Cylindrical Roller Bearing: NUP2216ECP

Single Row NUP Cylindrical Roller Bearing
$797.45
EA

checkbox icon This item typically ship in 1-4 weeks.

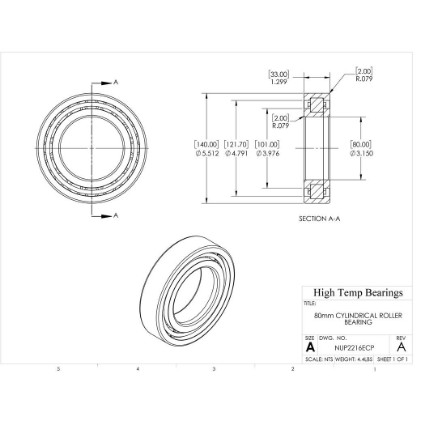

CAD
Specifications:
Description
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code410473
Shaft Size80mm
SealsNone
ConstructionTwo Flanges ID and Two OD
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Dimensions
Attribute nameAttribute value
Bore (mm)80
D (mm)140
B (mm)33
d1 (mm)101
r1-r2 (mm)2
r3-r4 (mm)2
D1 (mm)121.7
F (mm)95.3
Abutment Dimensions
Attribute nameAttribute value
Da (mm)129.8
damin (mm)90
Damin-db (mm)104
ramax (mm)2
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed5300
Nmax (RPM)Limiting speed5600
C (lb)Dynamic load capacity47660
C0 (lb)Static load capacity55078
Pu (lb)Fatigue load limit6969
kThrust factor0.2
Mass
Attribute nameAttribute value
Weight(lbs)4.4
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)300
Tmin (F)-40
