Single Row NUP Cylindrical Roller Bearing: NUP205ECP

Single Row NUP Cylindrical Roller Bearing: NUP205ECP

Single Row NUP Cylindrical Roller Bearing
$154.37
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

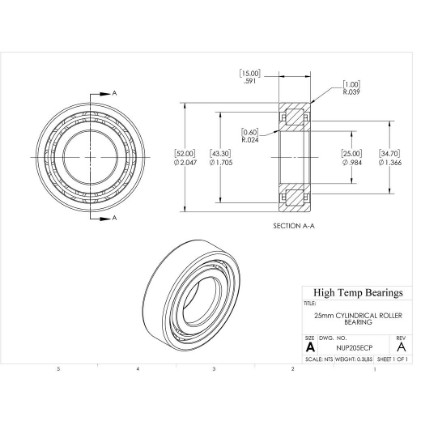

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges ID and Two OD
Shaft Size25mm
D (mm)52
B (mm)15
C (lb)7306
C0 (lb)6070
Pu (lb)753
Nr (RPM)15000
Nmax (RPM)16000
Weight(lbs)0.3
Code410314
Bore (mm)25
Da (mm)46.4
damin (mm)29.9
d1 (mm)34.7
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
Damin-db (mm)36
r1-r2 (mm)1
r3-r4 (mm)0.6
ramax (mm)1
k0.15
D1 (mm)43.3
F (mm)31.5
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
