Single Row NUP Cylindrical Roller Bearing: NUP203ECP

Single Row NUP Cylindrical Roller Bearing: NUP203ECP

Single Row NUP Cylindrical Roller Bearing
$162.33
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

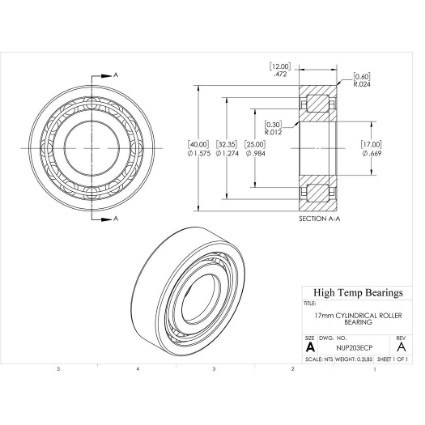

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges ID and Two OD
Shaft Size17mm
D (mm)40
B (mm)12
C (lb)4496
C0 (lb)3215
Pu (lb)389
Nr (RPM)20000
Nmax (RPM)22000
Weight(lbs)0.2
Code410292
Bore (mm)17
Da (mm)36
damin (mm)20.7
d1 (mm)25
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
Damin-db (mm)27
r1-r2 (mm)0.6
r3-r4 (mm)0.3
ramax (mm)0.6
k0.15
D1 (mm)32.35
F (mm)22.1
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
