Single Row NU Cylindrical Roller Bearing: NU310ECP

Single Row NU Cylindrical Roller Bearing: NU310ECP

Single Row NU Cylindrical Roller Bearing
$203.31
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

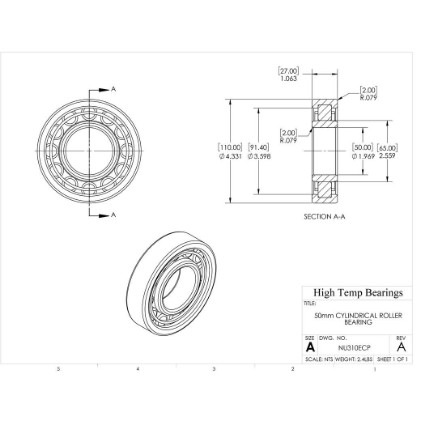

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges OD
Shaft Size50mm
D (mm)110
B (mm)27
C (lb)28551
C0 (lb)25179
Pu (lb)3372
Nr (RPM)6700
Nmax (RPM)8000
Weight(lbs)2.4
Code410389
Bore (mm)50
Da (mm)99.6
damin (mm)60
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
T (mm)91.4
Damin-db (mm)67
damax (mm)63
r1-r2 (mm)2
r3-r4 (mm)2
ramax (mm)2
rbmax (mm)2
k0.15
t (mm)91.4
smax (mm)1.9
B1 (mm)8
B2 (mm)13
F (mm)65
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
