Single Row NU Cylindrical Roller Bearing: NU307ECP

Single Row NU Cylindrical Roller Bearing: NU307ECP

Single Row NU Cylindrical Roller Bearing
$157.28
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

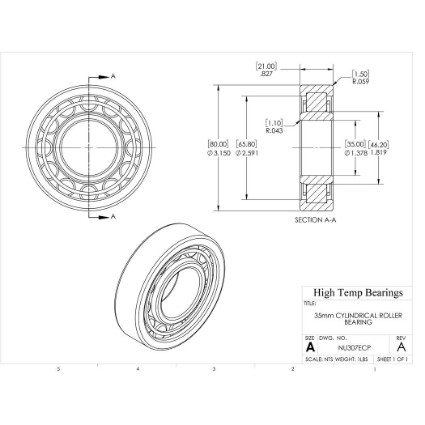

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges OD
Shaft Size35mm
D (mm)80
B (mm)21
C (lb)16861
C0 (lb)14163
Pu (lb)1832
Nr (RPM)9500
Nmax (RPM)11000
Weight(lbs)1
Code410347
Bore (mm)35
Da (mm)72.2
damin (mm)42
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
T (mm)65.8
Damin-db (mm)48
damax (mm)44
r1-r2 (mm)1.5
r3-r4 (mm)1.1
ramax (mm)1.5
rbmax (mm)1
k0.15
t (mm)65.8
smax (mm)1.2
B1 (mm)6
B2 (mm)9.5
F (mm)46.2
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
