Single Row NU Cylindrical Roller Bearing: NU2319ECP

Single Row NU Cylindrical Roller Bearing: NU2319ECP

Single Row NU Cylindrical Roller Bearing
$883.71
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

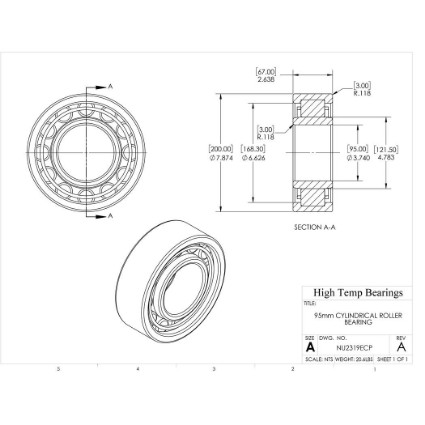

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges OD
Shaft Size95mm
D (mm)200
B (mm)67
C (lb)119149
C0 (lb)131514
Pu (lb)15624
Nr (RPM)3600
Nmax (RPM)4300
Weight(lbs)20.6
Code410515
Bore (mm)95
Da (mm)185
damin (mm)110
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
T (mm)168.3
Damin-db (mm)125
damax (mm)118
r1-r2 (mm)3
r3-r4 (mm)3
ramax (mm)2.5
rbmax (mm)2.5
k0.25
t (mm)168.3
smax (mm)6.9
B1 (mm)13
B2 (mm)24.5
F (mm)121.5
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
