Single Row NU Cylindrical Roller Bearing: NU2224ECP

Single Row NU Cylindrical Roller Bearing: NU2224ECP

Single Row NU Cylindrical Roller Bearing
$1,294.63
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

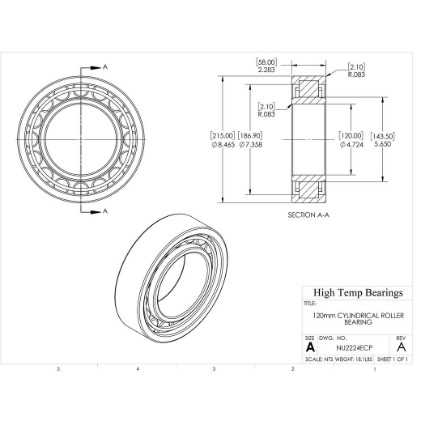

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges OD
Shaft Size120mm
D (mm)215
B (mm)58
C (lb)116901
C0 (lb)141630
Pu (lb)16186
Nr (RPM)3400
Nmax (RPM)3600
Weight(lbs)18.1
Code410543
Bore (mm)120
Da (mm)201.6
damin (mm)132
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
T (mm)186.9
Damin-db (mm)146
damax (mm)140
r1-r2 (mm)2.1
r3-r4 (mm)2.1
ramax (mm)2
rbmax (mm)2
k0.2
t (mm)186.9
smax (mm)3.8
B1 (mm)11
B2 (mm)20
F (mm)143.5
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
