Single Row NU Cylindrical Roller Bearing: NU2222ECP

Single Row NU Cylindrical Roller Bearing: NU2222ECP

Single Row NU Cylindrical Roller Bearing
$771.95
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

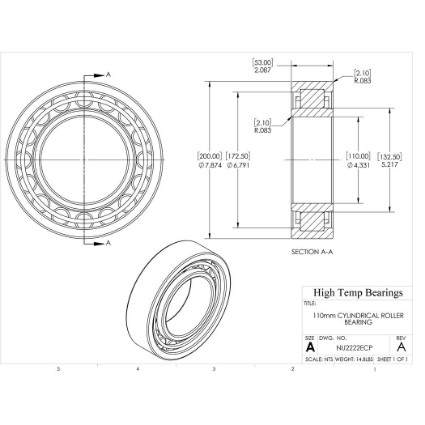

CAD
Specifications:
Description
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code410535
Shaft Size110mm
SealsNone
ConstructionTwo Flanges OD
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Dimensions
Attribute nameAttribute value
Bore (mm)110
D (mm)200
B (mm)53
T (mm)172.5
r1-r2 (mm)2.1
r3-r4 (mm)2.1
t (mm)172.5
F (mm)132.5
Abutment Dimensions
Attribute nameAttribute value
Da (mm)187
damin (mm)122
Damin-db (mm)135
damax (mm)129
ramax (mm)2
rbmax (mm)2
smax (mm)3.7
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed3600
Nmax (RPM)Limiting speed4000
C (lb)Dynamic load capacity98916
C0 (lb)Static load capacity116901
Pu (lb)Fatigue load limit13713
kThrust factor0.2
Mass
Attribute nameAttribute value
Weight(lbs)14.8
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)300
Tmin (F)-40
