Single Row NU Cylindrical Roller Bearing: NU2218ECP

Single Row NU Cylindrical Roller Bearing: NU2218ECP

Single Row NU Cylindrical Roller Bearing
$483.17
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

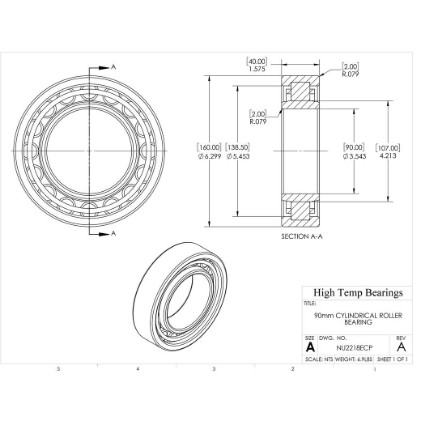

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges OD
Shaft Size90mm
D (mm)160
B (mm)40
C (lb)62947
C0 (lb)70815
Pu (lb)8768
Nr (RPM)4500
Nmax (RPM)5000
Weight(lbs)6.9
Code410498
Bore (mm)90
Da (mm)149
damin (mm)101
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
T (mm)138.5
Damin-db (mm)110
damax (mm)104
r1-r2 (mm)2
r3-r4 (mm)2
ramax (mm)2
rbmax (mm)2
k0.2
t (mm)138.5
smax (mm)2.6
B1 (mm)9
B2 (mm)15
F (mm)107
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
