Single Row NU Cylindrical Roller Bearing: NU2217ECP

Single Row NU Cylindrical Roller Bearing: NU2217ECP

Single Row NU Cylindrical Roller Bearing
$512.81
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

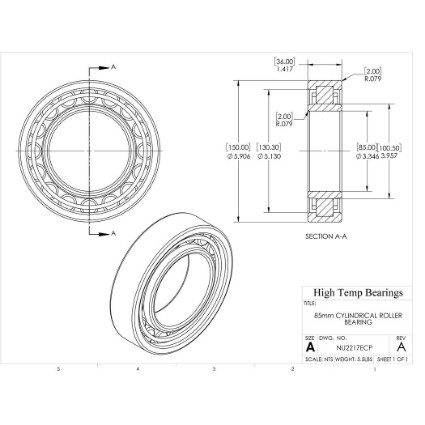

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges OD
Shaft Size85mm
D (mm)150
B (mm)36
C (lb)56203
C0 (lb)62947
Pu (lb)7756
Nr (RPM)4800
Nmax (RPM)5300
Weight(lbs)5.5
Code410485
Bore (mm)85
Da (mm)138.5
damin (mm)96
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
T (mm)130.3
Damin-db (mm)103
damax (mm)98
r1-r2 (mm)2
r3-r4 (mm)2
ramax (mm)2
rbmax (mm)2
k0.2
t (mm)130.3
smax (mm)2
F (mm)100.5
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
