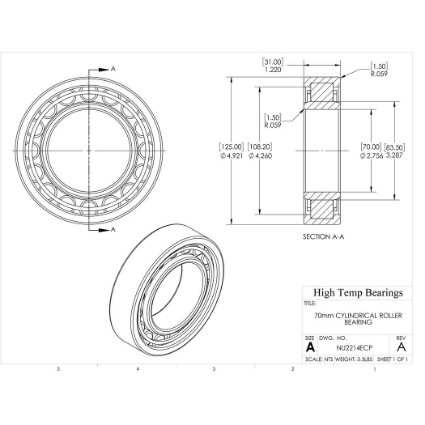

70mm Cylindrical Roller Bearing NU2214ECP
Print Page
Single Row NU Cylindrical Roller Bearing: NU2214ECP
Single Row NU Cylindrical Roller Bearing: NU2214ECP
Single Row NU Cylindrical Roller Bearing
$258.07
Qty:
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
Specifications:
Description
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
Product Information
Attribute name
Attribute value
Code
410445
Shaft Size
70mm
Seals
None
Construction
Two Flanges OD
Material
52100
PackageQTY
Package Quantity
1
UOM
Unit of Measure
EA
Dimensions
Attribute name
Attribute value
Bore (mm)
70
D (mm)
125
B (mm)
31
T (mm)
108.2
r1-r2 (mm)
1.5
r3-r4 (mm)
1.5
t (mm)
108.2
B1 (mm)
7
B2 (mm)
11.5
F (mm)
83.5
Abutment Dimensions
Attribute name
Attribute value
Da (mm)
115.4
damin (mm)
79
Damin-db (mm)
86
damax (mm)
81
ramax (mm)
1.5
rbmax (mm)
1.5
smax (mm)
1.7
Calculation Data
Attribute name
Attribute value
Nr (RPM)
Reference speed
6000
Nmax (RPM)
Limiting speed
6300
C (lb)
Dynamic load capacity
40466
C0 (lb)
Static load capacity
43388
Pu (lb)
Fatigue load limit
5733
k
Thrust factor
0.2
Mass
Attribute name
Attribute value
Weight(lbs)
3.3
Tolerance Class
Attribute name
Attribute value
Clearance
CN
Safe Loads
Attribute name
Attribute value
Tmax (F)
300
Tmin (F)
-40
