Single Row NU Cylindrical Roller Bearing: NU2208ECP

Single Row NU Cylindrical Roller Bearing: NU2208ECP

Single Row NU Cylindrical Roller Bearing
$132.23
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

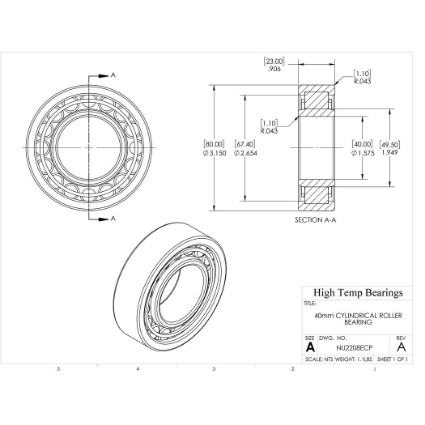

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges OD
Shaft Size40mm
D (mm)80
B (mm)23
C (lb)18322
C0 (lb)16861
Pu (lb)2169
Nr (RPM)9500
Nmax (RPM)11000
Weight(lbs)1.1
Code410357
Bore (mm)40
Da (mm)72.8
damin (mm)47
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
T (mm)67.4
Damin-db (mm)51
damax (mm)48
r1-r2 (mm)1.1
r3-r4 (mm)1.1
ramax (mm)1
rbmax (mm)1
k0.2
t (mm)67.4
smax (mm)1.9
B1 (mm)5
B2 (mm)9
F (mm)49.5
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
