Single Row NU Cylindrical Roller Bearing: NU213ECP

Single Row NU Cylindrical Roller Bearing: NU213ECP

Single Row NU Cylindrical Roller Bearing
$283.44
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

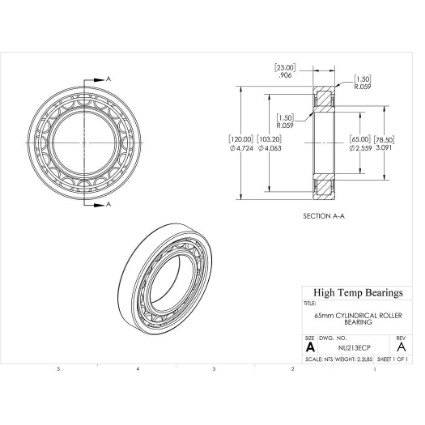

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges OD
Shaft Size65mm
D (mm)120
B (mm)23
C (lb)27427
C0 (lb)26528
Pu (lb)3507
Nr (RPM)6300
Nmax (RPM)6700
Weight(lbs)2.2
Code410425
Bore (mm)65
Da (mm)110.6
damin (mm)74
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
T (mm)103.2
Damin-db (mm)81
damax (mm)76
r1-r2 (mm)1.5
r3-r4 (mm)1.5
ramax (mm)1.5
rbmax (mm)1.5
k0.15
t (mm)103.2
smax (mm)1.4
B1 (mm)6
B2 (mm)10
F (mm)78.5
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
